NSYAMPM2419TB
Plate, Mounting, Galvanized Steel, Thalassa TBS & TBP Series Enclosures, 15 mm, 194 mm

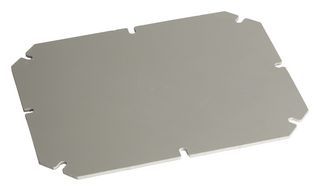

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoNSYAMPM2419TB
Newark Part No.85R2134
Product RangeClimaSys CA Series
Technical Datasheet
26 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
Product Information
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoNSYAMPM2419TB
Newark Part No.85R2134
Product RangeClimaSys CA Series
Technical Datasheet
Plate TypeMounting
Plate MaterialGalvanized Steel
Plate Color-
For Use WithThalassa TBS & TBP Series Enclosures
External Depth - Metric15mm
External Width - Metric194mm
External Height - Metric241mm
External Depth - Imperial0.59"
External Width - Imperial7.64"
External Height - Imperial9.49"
Product RangeClimaSys CA Series
SVHCTo Be Advised
Product Overview
NSYAMPM2419TB is a mounting plate for multi-purpose applications.
- Back studs mounting location, plain mounting plate description
- Galvanised steel material, By screws M4 self tapping - on back studs fixing mode
- 18 months warranty, multi-purpose amending
- Nominal 241mm/real 1685mm height
- Nominal 194mm/real 215mm width
- 1.5mm thickness
Technical Specifications
Plate Type
Mounting
Plate Color
-
External Depth - Metric
15mm
External Height - Metric
241mm
External Width - Imperial
7.64"
Product Range
ClimaSys CA Series
Plate Material
Galvanized Steel
For Use With
Thalassa TBS & TBP Series Enclosures
External Width - Metric
194mm
External Depth - Imperial
0.59"
External Height - Imperial
9.49"
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
