VCCF4

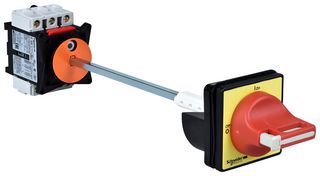

VCCF4 is a 3-pole TeSys vario switch-disconnector. It is used for main and emergency stop switching in motor applications upto 30kW at 400V AC-23. It is composed of a V4 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. This device is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine).

• Handle, switch, shaft extension (device composition)
• Handle door, switch symmetrical rail, switch plate (mounting support)
• High performance level, 3-poles, 3 NO contact type and composition
• IEC rated operational voltage is 690VAC 50/60Hz, mechanical durability is 30000 cycles
• Rated operational current is 57A AC-23 Ue: 400V, IEC 60947-3 standard
• 80A conventional free air thermal current, 63A conventional enclosed thermal current
• 8kV rated impulse withstand voltage, IP20 conforming to IEC 60529, IP65 degree of protection
• Rotary handle control type, extended rotary handle mounting style
• Red handle color, yellow handle front plate color
• Ambient air temperature range from -20°C to 50°C
