SA-026Q
Timer Module, Low Voltage, Miniature, Programmable, 1-60sec, With Relay Output, 120V AC, 24 DC

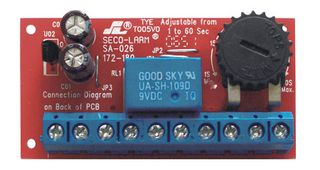

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
| Quantity | Price |
|---|---|
| 1+ | $28.360 |
Price for:Each
Minimum: 1
Multiple: 1
$28.36
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSECO-LARM
Manufacturer Part NoSA-026Q
Newark Part No.13T5764
Technical Datasheet
Product Range-
SVHCTo Be Advised
Product Overview
This timer module will extend the activation time of a momentary contact switch for 1~60 seconds via a field-adjustable rotary pot. It is ideal for electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity. MFR.# SA-026Q
- Adjustable timer from 1~60 seconds via a pot on board
- NO/NC switch trigger
- Compact design: 1-3/16" x 2-9/32" x 5/8"
- Operating voltage: 12~24 volts AC or DC
- Current: 1.8mA
- Relay output: Form-C (SPDT) via wires
- Contact rating: 3A@24VDC
- Built-in buzzer output (150mA@24VDC)
- Includes double-sided foam tape
Technical Specifications
Product Range
-
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
