HS103DR
Heat Sink, HS Series, 1 °C/W, DIN Rail, 76.2 mm, 60.2 mm, 132.1 mm

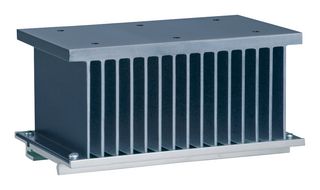

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSENSATA/CRYDOM
Manufacturer Part NoHS103DR
Newark Part No.41X7837
Product RangeHS Series
Your Part Number
Technical Datasheet
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $230.810 |
Price for:Each
Minimum: 1
Multiple: 1
$230.81
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSENSATA/CRYDOM
Manufacturer Part NoHS103DR
Newark Part No.41X7837
Product RangeHS Series
Technical Datasheet
Product RangeHS Series
Thermal Resistance1°C/W
Heat Sink MountingDIN Rail
External Length76.2mm
External Height60.2mm
External Width132.1mm
SVHCNo SVHC (12-Jan-2017)
Product Overview
The HS103DR is a Din-rail Mount Heat Sink for use with 1, 2 or 3 single or dual SSR's or one 3 Phase SSR. This HS103 series heat sink is made of aluminum. It accepts 2 to 40 fan.
- Black anodized finish
- 6 SSR mounting holes
- 8 x 32 Threads
- 1.0°C/W Thermal resistance
Applications
Industrial
Technical Specifications
Product Range
HS Series
Heat Sink Mounting
DIN Rail
External Height
60.2mm
SVHC
No SVHC (12-Jan-2017)
Thermal Resistance
1°C/W
External Length
76.2mm
External Width
132.1mm
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (12-Jan-2017)
