SSF212X100H
Float Switch, SSF212 Series, Horizontal, External, 1/2" NPT, SPST, Stainless Steel, 50 VA, 1m Cable

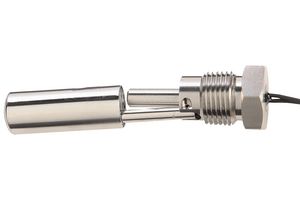

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoSSF212X100H
Newark Part No.27T4582
Product RangeSSF212 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
| Quantity | Price |
|---|---|
| 1+ | $337.790 |
| 5+ | $320.900 |
| 10+ | $310.770 |
Price for:Each
Minimum: 1
Multiple: 1
$337.79
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoSSF212X100H
Newark Part No.27T4582
Product RangeSSF212 Series
Technical Datasheet
Sensor Body MaterialStainless Steel
Output Current500mA
Operating Pressure Max5bar
Product RangeSSF212 Series
SVHCNo SVHC (25-Jun-2020)
Product Overview
The SSF212X100H is a horizontal Float Switchthat are fitted via a 1/2-inch NPT thread from the outside of the tank, so does not require access to the inside of the tank. These are manufactured in SS 304 & 316 and will work in liquids of SG 0.8 minimum. The switch action may be reversed by mounting the device with the orientation arrow pointing downwards, instead of the normal upwards direction.
- Compact switch design
- User configurable N/O (make on rise) or N/C (make on fall)
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Body Material
Stainless Steel
Operating Pressure Max
5bar
SVHC
No SVHC (25-Jun-2020)
Output Current
500mA
Product Range
SSF212 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2020)
