IE120
Surge Protector, DIN Rail, Mains Surge Protector, 2 Pole, 45 kA, 120 VAC, DIN Rail

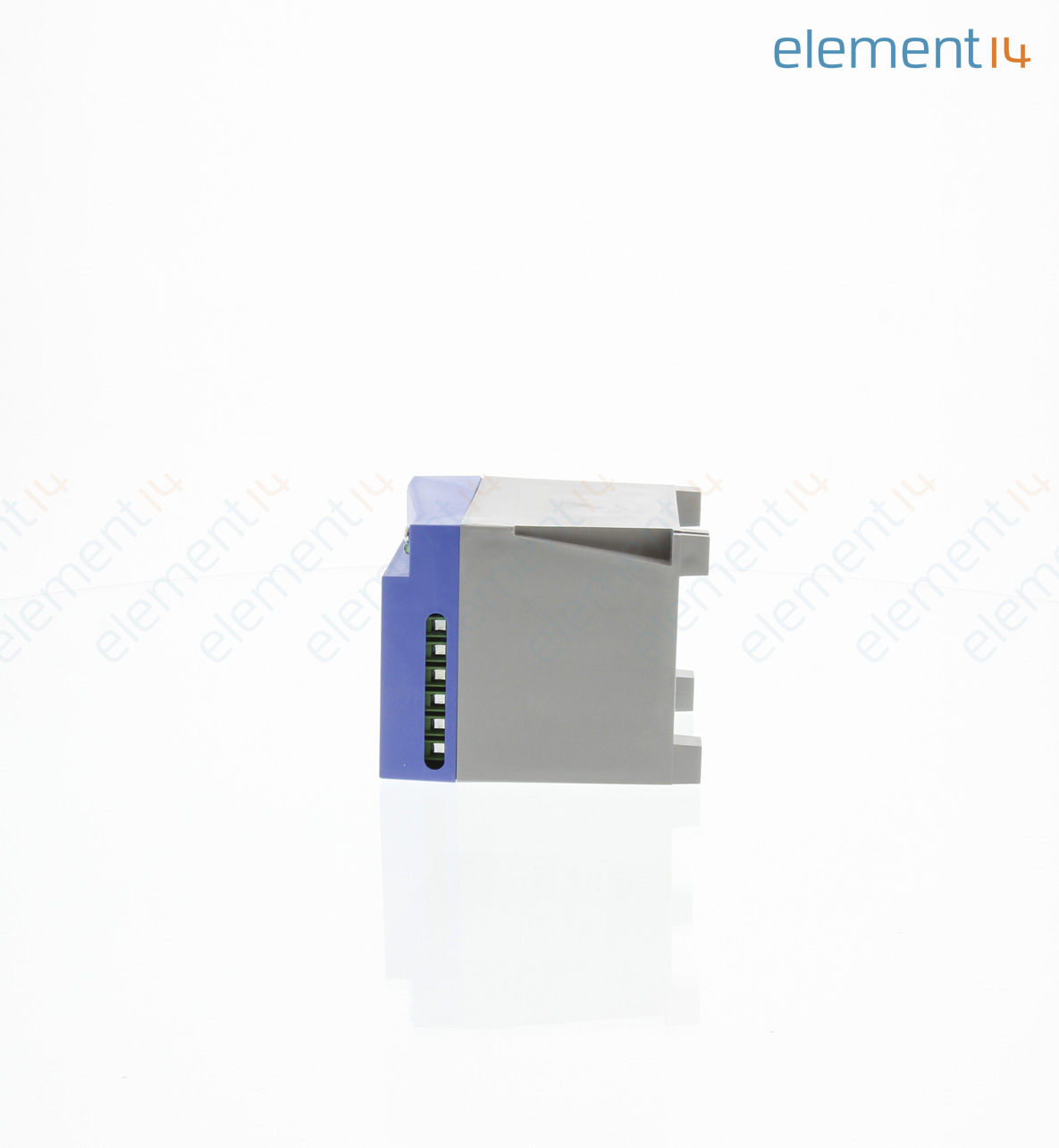

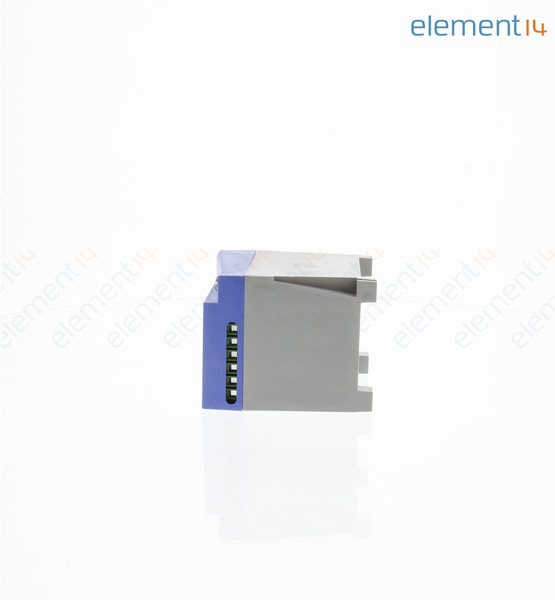

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSOLAHD
Manufacturer Part NoIE120
Newark Part No.16P8648
Product RangeIslatrol IE Series
Technical Datasheet
14 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $759.730 |
| 5+ | $739.920 |
Price for:Each
Minimum: 1
Multiple: 1
$759.73
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSOLAHD
Manufacturer Part NoIE120
Newark Part No.16P8648
Product RangeIslatrol IE Series
Technical Datasheet
Suppressor TypeMains Surge Protector
No. of Poles2 Pole
SPD Type-
Peak Surge Current45kA
Voltage Rating120VAC
Continuing Operating Voltage Max120VAC
Suppressor MountingDIN Rail
Output Current20A
Product RangeIslatrol IE Series
Response Time500ps
Plug Type-
SVHCTo Be Advised
Alternatives for IE120
1 Product Found
Product Overview
The IE120 is a High-frequency Noise Filter. Multi-staged design combines a unique hybrid clamping network with the active tracking technology of the Islatrol® family. Line to neutral, line to ground and neutral to ground transient protection. Ideal application includes critical industrial loads drawing up to 20A of continuous current.
- LED power indication
- Form-C contact for remote monitoring
- DIN mount
- -40 to 45°C Operating temperature
Applications
Power Management, Industrial, Motor Drive & Control
Technical Specifications
Suppressor Type
Mains Surge Protector
SPD Type
-
Voltage Rating
120VAC
Suppressor Mounting
DIN Rail
Product Range
Islatrol IE Series
Plug Type
-
No. of Poles
2 Pole
Peak Surge Current
45kA
Continuing Operating Voltage Max
120VAC
Output Current
20A
Response Time
500ps
SVHC
To Be Advised
