8STA60205SN
Circular Connector, Souriau 8STA Series, MIL-DTL-38999 Series, Straight Plug, 5 Contacts

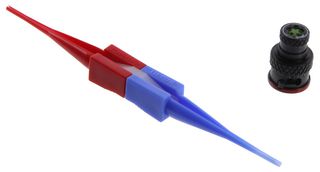

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSOURIAU-SUNBANK / EATON
Manufacturer Part No8STA60205SN
Newark Part No.28AH0568
Product RangeSouriau 8STA Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 26 week(s)
| Quantity | Price |
|---|---|
| 10+ | $124.310 |
| 25+ | $121.090 |
| 50+ | $117.860 |
Price for:Each
Minimum: 10
Multiple: 10
$1,243.10
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSOURIAU-SUNBANK / EATON
Manufacturer Part No8STA60205SN
Newark Part No.28AH0568
Product RangeSouriau 8STA Series
Technical Datasheet
Product RangeSouriau 8STA Series
Equivalent Military SpecificationMIL-DTL-38999 Series
Circular Connector Shell StyleStraight Plug
No. of Contacts5Contacts
Circular Contact TypeCrimp Socket - Contacts Not Supplied
Coupling StyleBayonet
Insert Arrangement02-05
Connector Body MaterialAluminum Body
Connector Body PlatingConductive Black Zinc Alloy
Contact MaterialCopper Alloy
Contact PlatingGold
Insert RotationN
Service ClassEnvironmentally Sealed
SVHCLead
Product Overview
The 8STA60205SN is a 5-position high density standard Crimp Plug with socket type gold-plated copper alloy contacts. The MIL-C-38999 series II circular connector has rugged aluminum body to ensure long service life in the harshest environment and conductive black zinc-plated aluminum shell.
- 100% Scoop proof
- Red keyway orientation
- Boot termination
- Liquid silicone rubber insulator
- Liquid silicone rubber seal
- Lightweight and flexible
- 500 mating cycles Endurance
- ≥5000mΩ at 400VDC Insulation resistance
- 48-hour Salt spray
- IP67 (1m for 30 minutes minimum) Sealing mated connector
Technical Specifications
Product Range
Souriau 8STA Series
Circular Connector Shell Style
Straight Plug
Circular Contact Type
Crimp Socket - Contacts Not Supplied
Insert Arrangement
02-05
Connector Body Plating
Conductive Black Zinc Alloy
Contact Plating
Gold
Service Class
Environmentally Sealed
Equivalent Military Specification
MIL-DTL-38999 Series
No. of Contacts
5Contacts
Coupling Style
Bayonet
Connector Body Material
Aluminum Body
Contact Material
Copper Alloy
Insert Rotation
N
SVHC
Lead
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
