Switch Disconnector, 3 Pole, 690 V, 200 A, IP40, Screw, DIN Rail Mount, Panel Mount

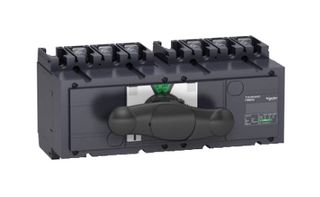

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No31142
Newark Part No.84AC4198
Product RangeTransferPacT ComPact Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
Product Information
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No31142
Newark Part No.84AC4198
Product RangeTransferPacT ComPact Series
Technical Datasheet
No. of Poles3 Pole
Contact Voltage AC Max690V
Contact Current AC Max200A
IP / NEMA RatingIP40
Switch Disconnector Terminal StyleScrew
Switch Disconnector Mountng TypeDIN Rail Mount, Panel Mount
Approvals / StandardsIEC, UL
Product RangeTransferPacT ComPact Series
SVHCTo Be Advised
Product Overview
31142 is a Transfer Pact FXM200, switch disconnector, change source of supply, manual transfer switch. Standards are IEC 60947-3, IEC 60947-1.
- Compact INS INS250 switch disconnector range compatibility
- 3P pole, DC, AC network type, 50/60Hz network frequency, fixed mounting mode
- Front upside and downside connection, suitability for isolation
- Contact position indicator, PC transfer switch class, 3 number of contact position
- Direct front rotary handle control type, manual operating mode, plate, rail mounting support
- 200A (60°C) conventional free air thermal current, uninterrupted rated duty
- 750VAC 50/60Hz rated insulation voltage, 8kV rated impulse withstand voltage
- With mechanical interlocking, 15000 cycles mechanical durability
- 5.35inch height, 11.61inch width, 5.16inch depth
- Ambient air temperature for operation range from -25 to 70°C
