9001SK2L38LGGH5

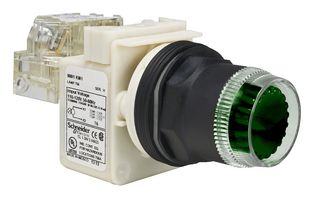

Industrial Pushbutton Switch, Harmony 9001SK Series, 30 mm, SPST-NO, Momentary Spring Return
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9001SK2L38LGGH5
Newark Part No.20K6819
Product RangeHarmony 9001SK Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Product Information
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9001SK2L38LGGH5
Newark Part No.20K6819
Product RangeHarmony 9001SK Series
Technical Datasheet
Product RangeHarmony 9001SK Series
Panel Cutout Diameter30mm
Contact ConfigurationSPST-NO
Switch OperationMomentary Spring Return
Pushbutton Actuator StyleRound Raised Flat
Actuator / Cap ColourTransparent
Contact Current AC Max10A
Contact Voltage VAC600V
Contact Current DC Max55mA
Contact Voltage VDC125V
IP RatingIP66
Switch MountingPanel Mount
Switch TerminalsScrew Clamp
Illumination ColorGreen
Panel Cutout (H x W)-
SVHCTo Be Advised
Technical Specifications
Product Range
Harmony 9001SK Series
Contact Configuration
SPST-NO
Pushbutton Actuator Style
Round Raised Flat
Contact Current AC Max
10A
Contact Current DC Max
55mA
IP Rating
IP66
Switch Terminals
Screw Clamp
Panel Cutout (H x W)
-
Panel Cutout Diameter
30mm
Switch Operation
Momentary Spring Return
Actuator / Cap Colour
Transparent
Contact Voltage VAC
600V
Contact Voltage VDC
125V
Switch Mounting
Panel Mount
Illumination Color
Green
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
