9007AO1
Limit Switch, SPDT-1NO, SPDT-NC, 15 A, 600 V

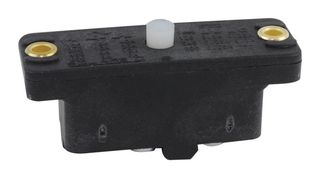

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9007AO1
Newark Part No.17B1161
Technical Datasheet
No Longer Available
Product Information
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9007AO1
Newark Part No.17B1161
Technical Datasheet
Limit Switch Actuator-
Contact ConfigurationSPDT-1NO, SPDT-NC
Contact Current AC Max15A
Contact Voltage AC Max600V
Operating Force Max-
Product Range-
Contact Current DC Max-
Contact Voltage DC Max-
SVHCTo Be Advised
Product Overview
The 9007AO1 is a single-pole double-throw double-break (SPDT-DB) 1NC-1NO heavy-duty Limit Switch with cast zinc body and snap-action silver contacts. This 9007AO/CO fixed body switch features plastic spring return linear plunger head with thermoplastic end cast zinc operator.
- Green premium product
- NEMA 1 conforming to NEMA type 250 protection rating
- IP20 conforming to IEC 60529 protection rating
- On end switch actuation
Applications
Industrial
Technical Specifications
Limit Switch Actuator
-
Contact Current AC Max
15A
Operating Force Max
-
Contact Current DC Max
-
SVHC
To Be Advised
Contact Configuration
SPDT-1NO, SPDT-NC
Contact Voltage AC Max
600V
Product Range
-
Contact Voltage DC Max
-
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
