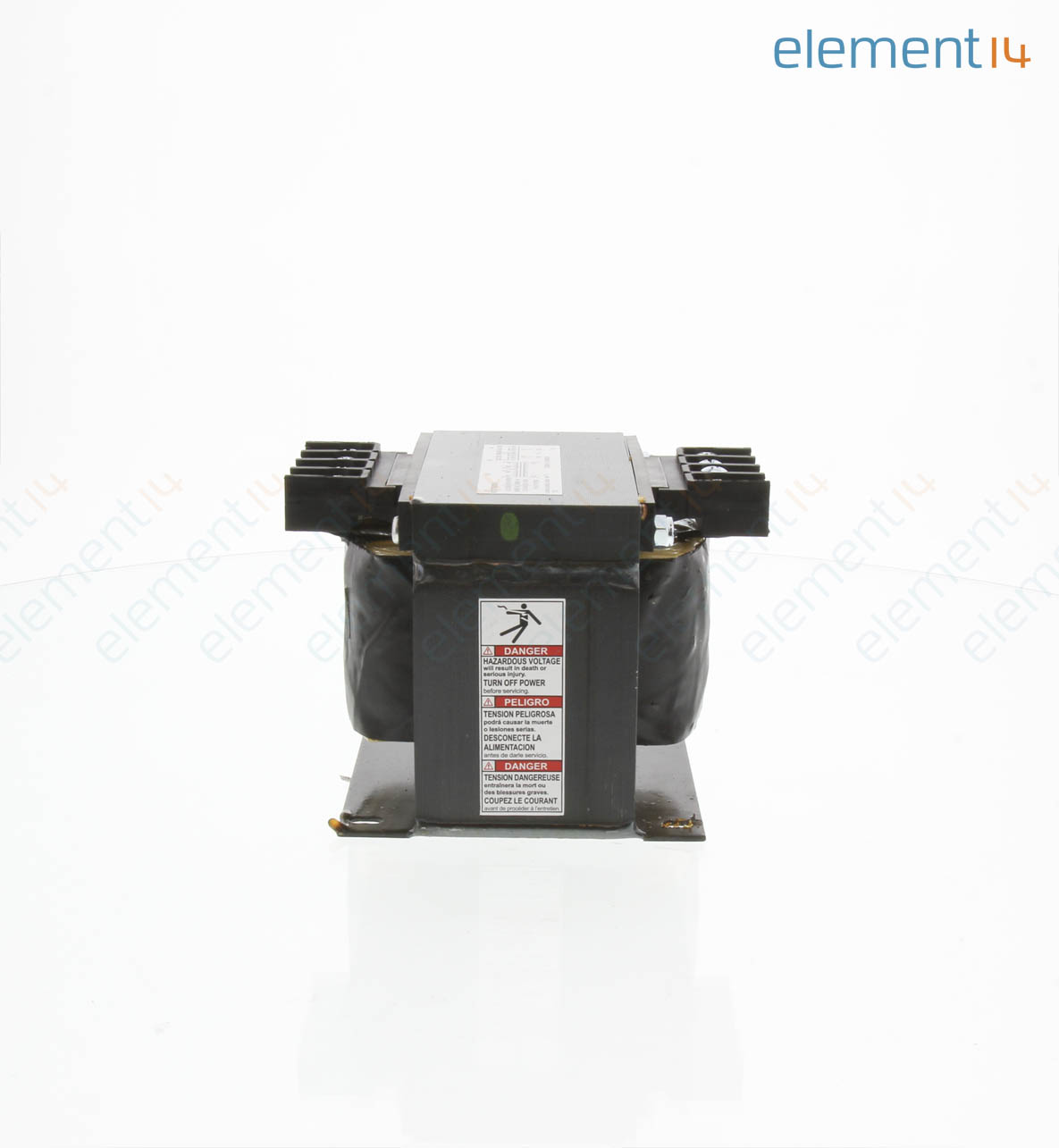

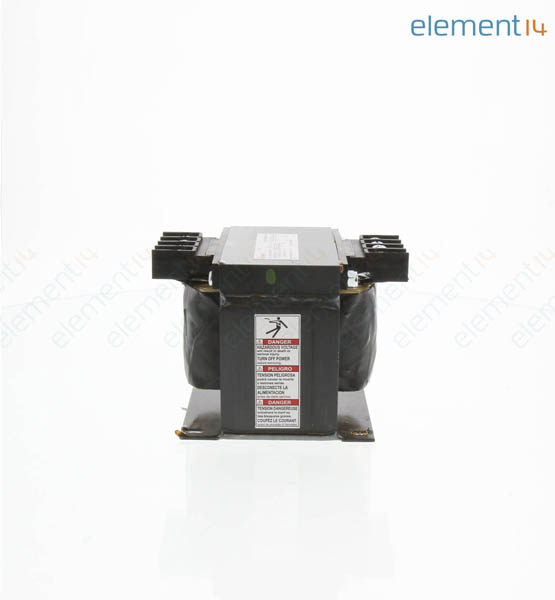

Chassis Mount Transformer, Single Phase, Open-Style Industrial Control
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9070T500D1
Newark Part No.17B3114
Also Known As785901904700
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Product Information
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9070T500D1
Newark Part No.17B3114
Also Known As785901904700
Technical Datasheet
Chassis Mount Transformer TypeOpen-Style Industrial Control
Primary Voltages220V, 230V, 240V, 440V, 460V , 480V
Secondary Voltages110V, 115V, 120V
Current Rating-
Power Rating500VA
Frequency Range50Hz / 60Hz
Winding Type-
Transformer TerminalsScrew Clamp
Isolation Voltage-
Product Range-
SVHCTo Be Advised
Product Overview
The 9070T500D1 is a 500VA type-T and TF industrial single-phase Control Transformer, 240/480V primary, 120V secondary voltage with screw clamp terminals electrical connection. This transformer is designed with low impedance windings for excellent voltage regulation.
- 180°C Insulation temperature
- 115°C Temperature rise
