9080GF6
DIN Rail Mount Terminal Block, Fused, 2 Positions, 18 AWG, 10 AWG, Screw, 30 A

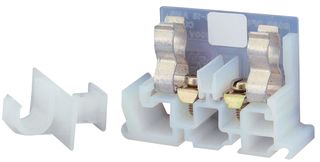

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9080GF6
Newark Part No.11R7948
Product RangeG Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerSQUARE D BY SCHNEIDER ELECTRIC
Manufacturer Part No9080GF6
Newark Part No.11R7948
Product RangeG Series
Technical Datasheet
No. of Positions2Positions
Wire Size AWG Min18AWG
Wire Size AWG Max10AWG
Conductor Area CSA-
Wire Connection MethodScrew
Rated Current30A
Rated Voltage600V
No. of Levels1
Product RangeG Series
SVHCTo Be Advised
Product Overview
The 9080GF6 from Schneider Electric is NEMA type sectional pressure wire clamp, fusible terminal block in DIN rail mounting. This natural coloured terminal block is suitable for wire size ranging from 18AWG to 10AWG.
- 16 terminal blocks per foot
- Tin plated copper busbar nylon block
- Rated voltage of 600VAC and rated current of 30A
- Fingersafe DIN 57470 protection type
- CE, CSA certified and UL listed
Applications
Industrial
Technical Specifications
No. of Positions
2Positions
Wire Size AWG Max
10AWG
Wire Connection Method
Screw
Rated Voltage
600V
Product Range
G Series
Wire Size AWG Min
18AWG
Conductor Area CSA
-
Rated Current
30A
No. of Levels
1
SVHC
To Be Advised
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
