GD1400HFY120P2S
IGBT Module, Half Bridge, 2.315 kA, 1.7 V, 7.94 kW, 150 °C, Module

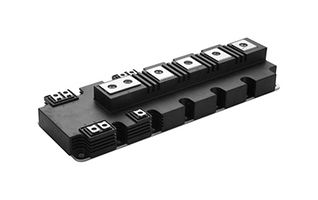

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
| Quantity | Price |
|---|---|
| 1+ | $957.950 |
| 6+ | $948.540 |
| 10+ | $939.390 |
| 26+ | $902.480 |
Price for:Each
Minimum: 1
Multiple: 1
$957.95
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTARPOWER
Manufacturer Part NoGD1400HFY120P2S
Newark Part No.84AH5708
Technical Datasheet
IGBT ConfigurationHalf Bridge
Continuous Collector Current2.315kA
DC Collector Current2.315kA
Collector Emitter Saturation Voltage Vce(on)1.7V
Collector Emitter Saturation Voltage1.7V
Power Dissipation Pd7.94kW
Power Dissipation7.94kW
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleModule
IGBT TerminationStud
Collector Emitter Voltage Max1.2kV
IGBT TechnologyTrench Field Stop
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
