BAT20JFILM
Small Signal Schottky Diode, Single, 23 V, 1 A, 620 mV, 5 A, 150 °C

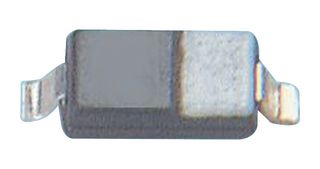

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoBAT20JFILM
Newark Part No.
Re-Reel58M3979
Cut Tape58M3979
Product RangeBAT20
Your Part Number
Technical Datasheet
7,095 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Packaging Options
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $0.405 |
| 10+ | $0.227 |
| 25+ | $0.217 |
| 50+ | $0.206 |
| 100+ | $0.196 |
| 250+ | $0.178 |
| 500+ | $0.159 |
| 1000+ | $0.149 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoBAT20JFILM
Newark Part No.
Re-Reel58M3979
Cut Tape58M3979
Product RangeBAT20
Technical Datasheet
Diode ConfigurationSingle
Repetitive Peak Reverse Voltage23V
Average Forward Current1A
Forward Voltage Max620mV
Forward Surge Current5A
Operating Temperature Max150°C
Diode Case StyleMiniDIP
No. of Pins2Pins
Reverse Recovery Time-
Diode MountingSurface Mount
Product RangeBAT20
Qualification-
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Diode Configuration
Single
Average Forward Current
1A
Forward Surge Current
5A
Diode Case Style
MiniDIP
Reverse Recovery Time
-
Product Range
BAT20
SVHC
No SVHC (25-Jun-2025)
Repetitive Peak Reverse Voltage
23V
Forward Voltage Max
620mV
Operating Temperature Max
150°C
No. of Pins
2Pins
Diode Mounting
Surface Mount
Qualification
-
