ST8024CDR
Specialized Interface, Smart Card

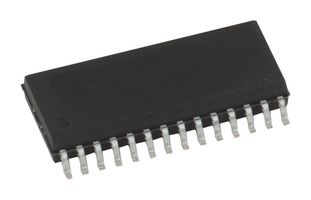

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoST8024CDR
Newark Part No.07AH7160
Technical Datasheet
680 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.190 |
| 10+ | $2.370 |
| 25+ | $2.160 |
| 50+ | $2.050 |
| 100+ | $1.940 |
| 250+ | $1.820 |
| 500+ | $1.760 |
| 1000+ | $1.690 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$3.19
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoST8024CDR
Newark Part No.07AH7160
Technical Datasheet
IC Interface Type-
Interface ApplicationsSmartcard Readers for Set Top Box, IC Card Readers for Banking, Identification, Pay TV System
Supply Voltage Min2.7V
Supply Voltage Max6.5V
Interface Case StyleSOIC
No. of Pins28Pins
Operating Temperature Min-25°C
Operating Temperature Max85°C
Product Range-
Automotive Qualification Standard-
MSLMSL 3 - 168 hours
SVHCNo SVHC (21-Jan-2025)
Product Overview
ST8024CDR is a smartcard interface. It is a complete low-cost analog interface for asynchronous 3V and 5V smart cards. It can be placed between the card and the microcontroller with a few external components to perform all supply protection and control functions. It is a direct replacement of ST8004. It is used in applications such as smart card readers for set-top-box, IC card readers for banking, identification, and pay TV.
- Designed to be compatible with the NDS conditional access system, IC card interface
- 3V or 5V supply for the IC (VDD and GND), thermal and short-circuit protection on all card contacts
- Controls rise and fall times, filtered overload detection at approximately 120mA
- Enhanced ESD protection on card side (<gt/> 6kV), 26MHz integrated crystal oscillator
- Built-in debounce on card presence contacts, one multiplexed status signal off
- Supply current is 1.2mA maximum at (card inactive, VDD = 3.3V, VDDP = 5V)
- Supply voltage range from 2.7V to 6.5V, total power dissipation is 0.56W maximum
- Clock frequency range from 2.2MHz to 3.2MHz
- Slew rate is 0.15V/µs typical at (VDD = 3.3V, VDDP = 5V, fXTAL = 10MHz)
- Operating temperature range from -25°C to 85°C, SO-28 package
Technical Specifications
IC Interface Type
-
Supply Voltage Min
2.7V
Interface Case Style
SOIC
Operating Temperature Min
-25°C
Product Range
-
MSL
MSL 3 - 168 hours
Interface Applications
Smartcard Readers for Set Top Box, IC Card Readers for Banking, Identification, Pay TV System
Supply Voltage Max
6.5V
No. of Pins
28Pins
Operating Temperature Max
85°C
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
