STEVAL-TDR016V1
Evaluation Board, Power Amplifier, Wireless Connectivity, PD55015E

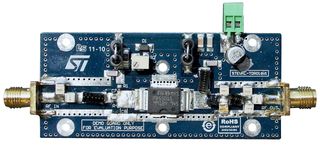

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-TDR016V1
Newark Part No.59T6653
Technical Datasheet
No Longer Available
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-TDR016V1
Newark Part No.59T6653
Technical Datasheet
Silicon ManufacturerSTMicroelectronics
Silicon Core NumberPD55015E
Kit Application TypeWireless Connectivity
Application Sub TypePower Amplifier
Core Architecture-
Core Sub-Architecture-
Silicon Family Name-
Kit ContentsEvaluation Board for PD55015E
Product Range-
SVHCNo SVHC (17-Dec-2015)
Product Overview
STEVAL-TDR016V1 is a common source N channel enhancement mode lateral field effect RF power amplifier designed for VHF marine radio application. The evaluation board is based on PD55015-E RF power transistor. It is designed for high gain, broad band commercial and industrial applications. It operates at 12V in common source mode at frequencies of up to 1GHz.
- Excellent thermal stability
- Frequency 155MHz to 165MHz
- Supply voltage 20V
- Output power 30W
- Efficiency 60% to 72%
- Load mismatch 20:1
- Beo free amplifier
Applications
Portable Devices, RF Communications, Industrial
