STGIPNS3HD60-H
Intelligent Power Module (IPM), IGBT, 600 V, 3 A, 1 kV, NSDIP, SLLIMM-nano

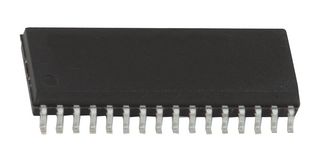

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTGIPNS3HD60-H
Newark Part No.84AC2875
Technical Datasheet
71 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.750 |
| 10+ | $13.670 |
| 25+ | $13.200 |
| 50+ | $12.380 |
| 100+ | $11.540 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$14.75
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTGIPNS3HD60-H
Newark Part No.84AC2875
Technical Datasheet
IPM Power DeviceIGBT
Voltage Rating (Vces / Vdss)600V
Current Rating (Ic / Id)3A
Isolation Voltage1kV
IPM Case StyleNSDIP
IPM SeriesSLLIMM-nano
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
STGIPNS3HD60-H is a SLLIMM™-nano small low-loss intelligent moulded module that provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six IGBTs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching speed. The package is optimized for thermal performance and compactness in built-in motor applications, or other low-power applications where assembly space is limited. This IPM includes an operational amplifier, completely uncommitted, and a comparator that can be used to design a fast and efficient protection circuit.
- IPM 3A, 600V, 3-phase IGBT inverter bridge including control ICs for gate driving
- Optimized for low electromagnetic interference, VCE(sat) negative temperature coefficient
- 3.3V, 5V, 15V CMOS/TTL inputs comparators with hysteresis and pull-down/pull-up resistors
- Undervoltage lockout, internal bootstrap diode
- Interlocking function
- Op-amp for advanced current sensing
- Comparator for fault protection against overtemperature and overcurrent
- Blanking time tdead ≥ 1µs
- Optimized pinout for easy board layout
Technical Specifications
IPM Power Device
IGBT
Current Rating (Ic / Id)
3A
IPM Case Style
NSDIP
Product Range
-
Voltage Rating (Vces / Vdss)
600V
Isolation Voltage
1kV
IPM Series
SLLIMM-nano
SVHC
No SVHC (21-Jan-2025)
