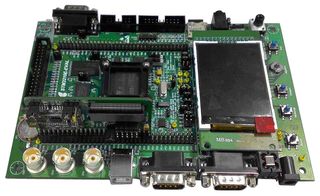

                      STM3210E-EVAL

                      Evaluation Board, Cortex-M3, I2C/SMBus Compatible Serial Interface Temperature Sensor

                      STMICROELECTRONICS STM3210E-EVAL
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoSTM3210E-EVAL
                      Newark Part No.08P5113
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoSTM3210E-EVAL
                      Newark Part No.08P5113
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerSTMicroelectronics
                      No. of Bits32bit
                      Silicon Family NameSTM32F1xx
                      Core ArchitectureARM
                      Core Sub-ArchitectureCortex-M3
                      Silicon Core NumberSTM32
                      Kit ContentsBoard
                      Product Range-
                      SVHCNo SVHC (17-Dec-2015)

                      Product Overview

                      The STM3210E-EVAL evaluation board is a complete development platform for STMicroelectronics ARM Cortex-M3 core based STM32F103ZET6 or STM32F103ZGT6 microcontroller. The range of hardware features on the board help user to evaluate all peripherals (LCD, SPI Flash, USART, IrDA, USB, audio, CAN bus, smartcard, MicroSD Card, NOR Flash, NAND Flash, SRAM, temperature sensor, audio DAC and motor control) and to develop their own applications. Extension headers make it easy to connect a daughterboard or wrapping board for specific application.

                      • Boot from user Flash, system memory or SRAM
                      • I2S audio DAC, stereo audio jack
                      • 128Mbyte MicroSD Card or bigger
                      • 64 or 128Mbit serial Flash, 512Kx16 SRAM, 512Mbit or 1Gbit NAND Flash and 128Mbit NOR Flash
                      • I2C/SMBus compatible serial interface temperature sensor, 2 RS-232 channel, IrDA transceiver
                      • 64 or 128Mbit serial Flash, 512Kx16 SRAM, 512Mbit or 1Gbit NAND Flash and 128Mbit NOR Flash
                      • CAN 2.0A/B compliant connection, JTAG and trace debug support
                      • 240 x 320 TFT colour LCD with touch screen
                      • Joystick with 4 direction control and selector
                      • User buttons, 4 colour LEDs, RTC with backup battery

                      Applications

                      Communications & Networking, Motor Drive & Control, Hobby & Education, Portable Devices, Medical, Industrial, Consumer Electronics, Automotive, Automation & Process Control, Embedded Design & Development

                      Technical Specifications

                      Silicon Manufacturer

                      STMicroelectronics

                      Silicon Family Name

                      STM32F1xx

                      Core Sub-Architecture

                      Cortex-M3

                      Kit Contents

                      Board

                      SVHC

                      No SVHC (17-Dec-2015)

                      No. of Bits

                      32bit

                      Core Architecture

                      ARM

                      Silicon Core Number

                      STM32

                      Product Range

                      -

                      Technical Docs (3)

                      element14 Technical Page EN

                      Product Change Notice EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      US ECCN:5A991B1
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (17-Dec-2015)
