TL-5276/W
Battery, 3.6 V, Lithium, 1 Ah, Connector, 1

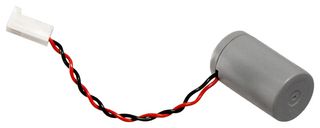

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTADIRAN BATTERIES
Manufacturer Part NoTL-5276/W
Newark Part No.95F5073
Product RangeTL Series
Technical Datasheet
219 In Stock
1,200 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $17.460 |
| 5+ | $16.890 |
| 10+ | $16.250 |
| 25+ | $14.970 |
| 50+ | $13.700 |
| 100+ | $12.350 |
| 250+ | $10.940 |
Price for:Each
Minimum: 1
Multiple: 1
$17.46
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTADIRAN BATTERIES
Manufacturer Part NoTL-5276/W
Newark Part No.95F5073
Product RangeTL Series
Technical Datasheet
Battery Voltage3.6V
Battery Size Code-
Battery TechnologyLithium
Battery Capacity1Ah
External Diameter16.8mm
Battery TerminalsConnector
External Height28.6mm
External Width-mm
Pack Quantity1
External Depth-mm
Battery Type / Size-
Weight-
Battery IEC Code-
Battery NEDA Code-
Battery Compliance-
Product RangeTL Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The TL5276/W is a 3.6V/1Ah Non-rechargeable Battery features a lithium technology and connector terminals. Typical values at 25°C for batteries stored for one year or less. Suitable for hook and loop fastener mounting.
- 1Ah Nominal capacity at 2mA to 2V
- 100mA Maximum pulse current capability
- -55 to 85°C Operating temperature range
- Lexan 143 UV stable enclosure
Applications
Computers & Computer Peripherals, Metering
Technical Specifications
Battery Voltage
3.6V
Battery Technology
Lithium
External Diameter
16.8mm
External Height
28.6mm
Pack Quantity
1
Battery Type / Size
-
Battery IEC Code
-
Battery Compliance
-
SVHC
No SVHC (21-Jan-2025)
Battery Size Code
-
Battery Capacity
1Ah
Battery Terminals
Connector
External Width
-mm
External Depth
-mm
Weight
-
Battery NEDA Code
-
Product Range
TL Series
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
UN Hazard Code:LITH
Product traceability
