Non Isolated POL DC/DC Converter, ITE, DOSA, 72.6 W, 600 mV, 3.63 V, 20 A

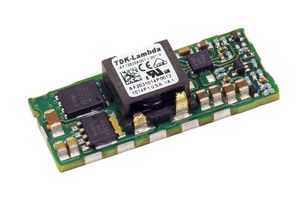

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTDK-LAMBDA
Manufacturer Part NoIAF05020A006V-003-R
Newark Part No.66W2375
Product RangeiAF Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 54 week(s)
| Quantity | Price |
|---|---|
| 1+ | $19.460 |
Price for:Each
Minimum: 250
Multiple: 250
$4,865.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTDK-LAMBDA
Manufacturer Part NoIAF05020A006V-003-R
Newark Part No.66W2375
Product RangeiAF Series
Technical Datasheet
Power Supply ApplicationsITE
DC / DC Converter TypeDOSA
Output Power Max72.6W
Output Voltage Min600mV
Output Voltage Max3.63V
Output Current Max20A
DC / DC Converter Output TypeAdjustable
Input Voltage DC Min2.4V
Input Voltage DC Max5.5V
Height7.75mm
Depth33mm
Width13.5mm
Product RangeiAF Series
Product Overview
IAF05020A006V-003-R is a iAF series non-isolated SMT point of load DC-DC converter. It includes overcurrent protection. Application includes industrial, test, comm, broadcast. Certified by IEC60950-1, CSA60950-1, UL60950-1, IEC62368-1, CSA62368-1, UL62368-1.
- Input voltage range from 2.4 to 5.5VDC, rated output voltage is 600mVdc
- Maximum output power is 72.6W, typical efficiency is 93.5%, output current range from 0 to 20A
- Fully optimized control loop with excellent transient response
- No external loop tuning components needed
- DOSA compatible footprint, ideal for second sourcing
- LGA or EPC format, choice of layout
- PCB mount package/mounting, SMD terminal style
- Operating temperature range from -40 to 115°C
- Width is 1.30, height is 0.31, depth is 0.53inch (nominal)
