ACM1513-551-2PL-TLHF
Filter, Common Mode, ACM Series, 550 ohm, 10 A, 15mm x 13mm x 6mm

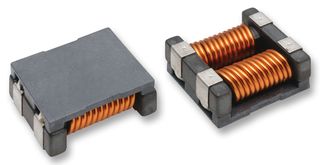

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTDK
Manufacturer Part NoACM1513-551-2PL-TLHF
Newark Part No.61M4753
Product RangeACM Series
Technical Datasheet
5,523 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.620 |
| 10+ | $2.190 |
| 25+ | $1.920 |
| 50+ | $1.880 |
| 100+ | $1.840 |
| 250+ | $1.690 |
| 1000+ | $1.490 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$2.62
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTDK
Manufacturer Part NoACM1513-551-2PL-TLHF
Newark Part No.61M4753
Product RangeACM Series
Technical Datasheet
DC Current Rating10A
Inductance1.1µH
Product RangeACM Series
Impedance550ohm
Inductor Case / Package-
Common Mode Filter Case15mm x 13mm x 6mm
Product Length15mm
Product Width13mm
Product Height6mm
Qualification-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The ACM series Common Mode Filter suitable for noise counter measure for adapter line, battery line, large current and power line applications. This series has excellent common mode impedance and noise suppression in a compact case.
- Low profile and small size makes it optimal for surface mounting
- Compatible with high-density portable devices,
- Halogen-free
Applications
Industrial, Power Management
Technical Specifications
DC Current Rating
10A
Product Range
ACM Series
Inductor Case / Package
-
Product Length
15mm
Product Height
6mm
SVHC
No SVHC (21-Jan-2025)
Inductance
1.1µH
Impedance
550ohm
Common Mode Filter Case
15mm x 13mm x 6mm
Product Width
13mm
Qualification
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
