282110-1

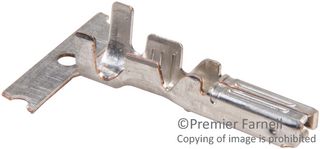

Contact, SUPERSEAL 1.5 Series, Socket, Crimp, 15 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No282110-1
Newark Part No.20C2613
Product RangeSUPERSEAL 1.5 Series
Technical Datasheet
120,713 In Stock
Need more?
18269 Delivery in 1-3 Business Days(US stock)
102444 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $0.216 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No282110-1
Newark Part No.20C2613
Product RangeSUPERSEAL 1.5 Series
Technical Datasheet
Product RangeSUPERSEAL 1.5 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max15AWG
Contact PlatingTin Plated Contacts
For Use WithSuperseal 1.5 Series Connectors
Wire Size AWG Min18AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 282110-1 is a Mini-MIC Receptacle Contact made of phosphor bronze with tin plated finish. It accepts 18 to 15AWG wire size. The sealed F-crimp contact is suitable for Super-Seal 1.5 series connectors and single wire seal (SWS).
- Locking lance primary locking
- 180° Receptacle style
- 14A Typical current rating
Applications
Industrial
Technical Specifications
Product Range
SUPERSEAL 1.5 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
18AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
15AWG
For Use With
Superseal 1.5 Series Connectors
Contact Material
Phosphor Bronze
Alternatives for 282110-1
2 Products Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
