CP500-DEMO
Current Probe, DEMO, Current Clamp, 500 A, Oscilloscopes

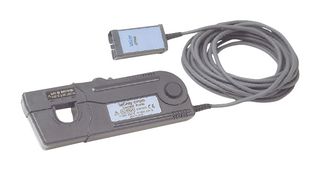

Image is for illustrative purposes only. Please refer to product description.
Available to Order by Phone
Please contact us for latest stock details.
Product Information
ManufacturerTELEDYNE LECROY
Manufacturer Part NoCP500-DEMO
Newark Part No.14AM3334
Technical Datasheet
Meter Side Connector-
Probe Side ConnectorCurrent Clamp
Current Range Max500A
Current Range Min-
For Use WithOscilloscopes
Product Range-
SVHCTo Be Advised
Product Overview
CP500-DEMO is a 2MHz current probe(Demo). This current probe does not require the breaking of a circuit or the insertion of a shunt to make accurate and reliable current measurements. Based on a combination of hall effect and transformer technology, it is ideal for making accurate AC, DC, and impulse current measurements.
- Considered “Used” condition, this product has been utilized for the purpose of demonstration only
- Near new condition, with all original accessories showing only slight signs of handling
- 500Arms continuous current, 700A peak current, 100mA/div minimum sensitivity
- Rise time (typical) is = 175ns
- 0.01V/A & 0.1V/A output voltage
- ProBus active probe interface with automatic scaling in A/div
- Autozero and degauss capabilities built into instrument’s user interface
- 20mm maximum conductor size
- 2 meter cable
- Operating temperature range from 0°C to 40°C
Technical Specifications
Meter Side Connector
-
Current Range Max
500A
For Use With
Oscilloscopes
SVHC
To Be Advised
Probe Side Connector
Current Clamp
Current Range Min
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
