72-2580

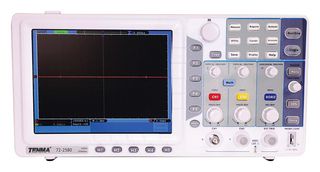

Digital Oscilloscope, Slim Body, 2 Channel, 30 MHz, 250 MSPS, 10 kpts, 11 ns
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerTENMA
Manufacturer Part No72-2580
Newark Part No.45Y0261
Technical Datasheet
Product Range-
Scope Channels2 Channel
Bandwidth30MHz
Sampling Rate250MSPS
Display Memory Depth10 kpts
Calculated Rise Time11ns
Scope Display TypeTFT LCD Color
Kit ContentsOscilloscope, Probes
Manufacturer Warranty-
Plug TypeUS
SVHCNo SVHC (15-Jan-2018)
Product Overview
The 72-2580 is a 2-channel 30MHz Oscilloscope with 8-inch color TFT display. This economic oscilloscope provides an user friendly interface with stable readings, making it perfect for the hobbyist, educator or occasional user. The large 8-inch color TFT display provides large and crisp readings.
- External trigger
- USB input/output and LAN connection
- Slim body design is only 3" deep
- DC, AC and GND input coupling
- Edge, pulse, video, slope and alternate trigger type
- Auto, normal and single trigger mode
- Includes probes
- 100 to 240VAC at 50/60Hz Voltage
- <lt/>18W Power consumption
- ±3% DC gain accuracy
- 24 month limited warranty *view Terms & Conditions for details
Applications
Test & Measurement
Technical Specifications
Product Range
-
Bandwidth
30MHz
Display Memory Depth
10 kpts
Scope Display Type
TFT LCD Color
Manufacturer Warranty
-
SVHC
No SVHC (15-Jan-2018)
Scope Channels
2 Channel
Sampling Rate
250MSPS
Calculated Rise Time
11ns
Kit Contents
Oscilloscope, Probes
Plug Type
US
Technical Docs (3)
Legislation and Environmental
US ECCN:3A992
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
