72-7615

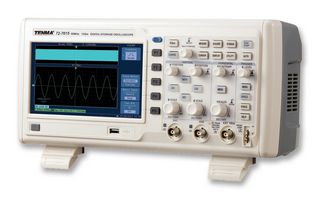

Digital Oscilloscope, Digital Oscilloscopes, 2 Channel, 60 MHz, 1 GSPS, 16 Mpts, 5.8 ns
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTENMA
Manufacturer Part No72-7615
Newark Part No.52Y8793
Product RangeDigital Oscilloscopes
Technical Datasheet
No Longer Available
Product Information
ManufacturerTENMA
Manufacturer Part No72-7615
Newark Part No.52Y8793
Product RangeDigital Oscilloscopes
Technical Datasheet
Product RangeDigital Oscilloscopes
Scope Channels2 Channel
Bandwidth60MHz
Sampling Rate1GSPS
Display Memory Depth16 Mpts
Calculated Rise Time5.8ns
Scope Display TypeLCD Color
Kit ContentsProbe x 2 (1x, 10x Switchable), Power Cord , USB Cable, PC Software CD
Manufacturer Warranty-
Plug TypeUS
SVHCNo SVHC (19-Jan-2021)
Product Overview
Digital storage oscilloscope with 7" TFT LCD display (800 x 480).
- 2 Analogue channels
- 800x480, 7" Widescreen LCD display
- Print screen feature
- 24 Automatic and 2 advanced measurements
- Unique waveform recording and replay function
- 6 Digital trigger frequency counter
- 6 Digital trigger frequency counter
- USB drive system software upgrade
- 24 month limited warranty *view Terms & Conditions for details
Applications
Test & Measurement
Warnings
Not compatible with Windows 10
Technical Specifications
Product Range
Digital Oscilloscopes
Bandwidth
60MHz
Display Memory Depth
16 Mpts
Scope Display Type
LCD Color
Manufacturer Warranty
-
SVHC
No SVHC (19-Jan-2021)
Scope Channels
2 Channel
Sampling Rate
1GSPS
Calculated Rise Time
5.8ns
Kit Contents
Probe x 2 (1x, 10x Switchable), Power Cord , USB Cable, PC Software CD
Plug Type
US
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
