Available to Order
| Quantity | Price |
|---|---|
| 1+ | $242.750 |
Price for:Each
Minimum: 1
Multiple: 1
$242.75
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information

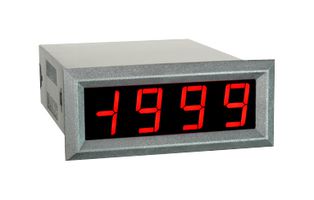

ManufacturerTEXMATE
Manufacturer Part NoSM-35-DCV
Newark Part No.84M8766
Product RangePM Series
Technical Datasheet
No. of Digits / Alpha3.5
Meter FunctionMultifunction
Meter Range± 199.9mV to ± 1.2kV, ± 200µA to ± 20A, 200 ohm to 20Mohm, -50°C to +150°C
Digit Height0.56"
Panel Cutout Height24.6mm
Panel Cutout Width64.8mm
Supply Voltage Min4.5VDC
Supply Voltage Max5.5VDC
Operating Temperature Min0°C
Operating Temperature Max60°C
Product RangePM Series
SVHCTo Be Advised
Technical Specifications
No. of Digits / Alpha
3.5
Meter Range
± 199.9mV to ± 1.2kV, ± 200µA to ± 20A, 200 ohm to 20Mohm, -50°C to +150°C
Panel Cutout Height
24.6mm
Supply Voltage Min
4.5VDC
Operating Temperature Min
0°C
Product Range
PM Series
Meter Function
Multifunction
Digit Height
0.56"
Panel Cutout Width
64.8mm
Supply Voltage Max
5.5VDC
Operating Temperature Max
60°C
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
