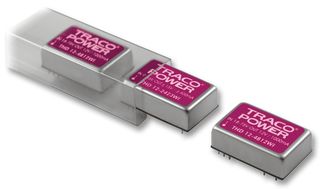

THD 12-4822WI
Isolated Through Hole DC/DC Converter, ITE, DIP, 4:1, 12 W, 2 Output, 12 V
| Quantity | Price |
|---|---|
| 1+ | $71.210 |
Product Information
Product Overview
The THD 12-4822WI is a 2-output 12W board-mount isolated high performance DC/DC Converter featuring ultra wide 4:1 input voltage ranges with industry-standard footprint. It offers 18 to 75VDC input voltage range and ±12VDC output voltage. Overload and overvoltage protection as well as remote ON/OFF are included as standard. Built-in filters for both input and output minimize the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime.
- Undervoltage lock-out circuit
- Shielded metal case with insulated base plate
- Continuous short-circuit protection
- 1500V I/O isolation
- 85% Typical efficiency
- 48VDC Nominal input voltage
Applications
Power Management, Industrial, Communications & Networking, Sensing & Instrumentation
Technical Specifications
ITE
4:1
2 Output
500mA
500mA
1.5kV
Fixed
10.2mm
31.8mm
75V
No SVHC (14-Jun-2023)
DIP
12W
12V
-12V
-
48V
20.3mm
Through Hole
18V
THD 12WI Series
