LRC-LRF2512LF-01-R018-F
SMD Current Sense Resistor, 0.018 ohm, LR Series, 2512 [6432 Metric], 2 W, ± 1%, Thick Film

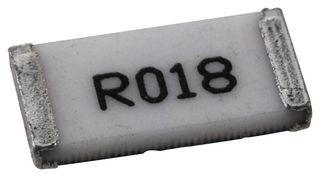

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTT ELECTRONICS / INTERNATIONAL RESISTIVE
Manufacturer Part NoLRC-LRF2512LF-01-R018-F
Newark Part No.88K2545
Product RangeLR Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 27 week(s)
| Quantity | Price |
|---|---|
| 250+ | $0.939 |
Price for:Each (Supplied on Cut Tape)
Minimum: 3600
Multiple: 1800
$3,380.40
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTT ELECTRONICS / INTERNATIONAL RESISTIVE
Manufacturer Part NoLRC-LRF2512LF-01-R018-F
Newark Part No.88K2545
Product RangeLR Series
Technical Datasheet
Resistance0.018ohm
Product RangeLR Series
Resistor Case / Package2512 [6432 Metric]
Power Rating2W
Resistance Tolerance± 1%
Resistor TechnologyThick Film
Product Length6.5mm
Temperature Coefficient± 100ppm/°C
Product Width3.25mm
Product Height0.84mm
Operating Temperature Min-55°C
Operating Temperature Max150°C
QualificationAEC-Q200
SVHCNo SVHC (10-Jun-2022)
Product Overview
LRC-LRF2512LF-01-R018-F is a LR series low-value current sense surface mount flat chip resistor.
- 0.018ohm resistance
- ±1% resistive tolerance
- 2512 (6432) metric resistor case size
- ±100ppm/°C temperature coefficient
- AEC-Q200 qualified
- Designed for current sensing in power electronic systems
- Flip-chip orientation
Technical Specifications
Resistance
0.018ohm
Resistor Case / Package
2512 [6432 Metric]
Resistance Tolerance
± 1%
Product Length
6.5mm
Product Width
3.25mm
Operating Temperature Min
-55°C
Qualification
AEC-Q200
Product Range
LR Series
Power Rating
2W
Resistor Technology
Thick Film
Temperature Coefficient
± 100ppm/°C
Product Height
0.84mm
Operating Temperature Max
150°C
SVHC
No SVHC (10-Jun-2022)
Technical Docs (2)
Alternatives for LRC-LRF2512LF-01-R018-F
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
