BMWS 8151-0/9
Sensor Connector, PROFIBUS Series, M12, Female, 5 Positions, Screw Socket, Straight Cable Mount

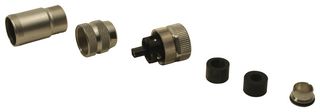

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTURCK
Manufacturer Part NoBMWS 8151-0/9
Newark Part No.10R0852
Product RangePROFIBUS Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $54.910 |
Price for:Each
Minimum: 1
Multiple: 1
$54.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoBMWS 8151-0/9
Newark Part No.10R0852
Product RangePROFIBUS Series
Technical Datasheet
Product RangePROFIBUS Series
Sensor Connector SizeM12
Sensor Connector GenderFemale
No. of Contacts5Contacts
No. of Positions5 Positions
Sensor Contact TypeScrew Socket
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector Coding-
Connector Body MaterialNylon (Polyamide) Body
Contact MaterialBrass
Contact PlatingGold
Current Rating4A
Voltage Rating125V
SVHCLead
Product Overview
The BMWS 8151-0/9 is a 5-pin female Field-wireable Connector accepts 6 to 8mm cable and up to 18AWG conductors. It mates with reverse key 5-pin cordsets and receptacles. It is made of brass with nickel plated finish.
- PG9 Cable gland
- Screw terminal
- Metal, fully shielded
Applications
Sensing & Instrumentation
Technical Specifications
Product Range
PROFIBUS Series
Gender
Receptacle
No. of Contacts
5Contacts
Sensor Contact Type
Screw Socket
IP / NEMA Rating
IP67
Connector Body Material
Nylon (Polyamide) Body
Contact Plating
Gold
Voltage Rating
125V
Sensor Connector Size
M12
Sensor Connector Gender
Female
No. of Positions
5 Positions
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
-
Contact Material
Brass
Current Rating
4A
SVHC
Lead
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
