CD-0-2700-9923-I

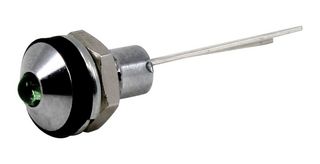

LED Panel Mount Indicator, Green, 28 VDC, 6 mm, 20 mA, 199 mcd, IP67
.jpg){kind=logo}
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoCD-0-2700-9923-I
Newark Part No.51AH5743
Product RangeCD Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 100+ | $8.610 |
| 300+ | $8.220 |
| 500+ | $7.830 |
Price for:Each
Minimum: 100
Multiple: 100
$861.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoCD-0-2700-9923-I
Newark Part No.51AH5743
Product RangeCD Series
Technical Datasheet
LED ColorGreen
Operating Voltage28VDC
Mounting Hole Dia6mm
Forward Current If20mA
Luminous Intensity199mcd
IP / NEMA RatingIP67
Product RangeCD Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
CD-0-2700-9923-I is a CD series 0.236″ LED indicator designed for the extreme, harsh and outdoor environment. The LED Indicator features with high degree of protection, Prominent bezel style for increased visibility.
- Maximum panel thickness is 0.09″
- Nickel-plated brass housing
- Sealed against moisture and dust (IP67)
- Green LED
- Resistant to vandal, shock and vibration
- Bi-pins termination
- Mounting hardware provided: lock washer, hex nut and gasket seal
- Life expectancy: 50,000 hours average
Technical Specifications
LED Color
Green
Mounting Hole Dia
6mm
Luminous Intensity
199mcd
Product Range
CD Series
Operating Voltage
28VDC
Forward Current If
20mA
IP / NEMA Rating
IP67
SVHC
No SVHC (21-Jan-2025)
