THR_22

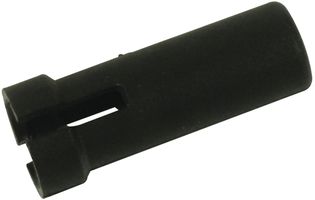

LED Mount Coupler, 4.08 mm x 12.49 mm, Black, Plastic, 3mm / T-1 LEDs, Through Hole
.jpg){kind=logo}
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoTHR_22
Newark Part No.41R3589
Technical Datasheet
560 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $2.460 |
| 10+ | $2.460 |
| 25+ | $2.460 |
| 50+ | $2.460 |
| 100+ | $2.460 |
| 300+ | $2.460 |
| 500+ | $2.450 |
Price for:Each
Minimum: 1
Multiple: 1
$2.46
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoTHR_22
Newark Part No.41R3589
Technical Datasheet
No. of LEDs1LEDs
Holder TypeMount
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The THR 22 is a Through-hole LED Mount/Coupler made of nylon 6/6. It is suitable for light pipe with Ø2.2mm jacket and optical core no greater than Ø1.5mm. For best results use only narrow viewing angle non-diffused LEDs with recommended PWB light pipe preparation 3 solder in place output power greater than 100mcd.
- UL94V-2 Flammability rating
Applications
Industrial
Notes
Do not wave solder with this device.
Technical Specifications
No. of LEDs
1LEDs
Product Range
-
Holder Type
Mount
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
