75-227895

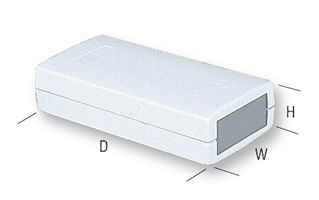

Plastic Enclosure, IP62, Handheld, Plastic, 89.9 mm, 50 mm, 24 mm, IP62
Image is for illustrative purposes only. Please refer to product description.
119 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $22.630 |
| 50+ | $19.000 |
| 100+ | $17.420 |
| 250+ | $16.050 |
| 500+ | $14.230 |
Price for:Each
Minimum: 1
Multiple: 1
$22.63
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVERO
Manufacturer Part No75-227895
Newark Part No.25M5270
Technical Datasheet
Enclosure TypeHandheld
Enclosure MaterialABS
External Height - Metric90mm
External Width - Metric50mm
External Depth - Metric24mm
IP RatingIP64
IP RatingIP64
Body ColorGrey
NEMA Rating-
External Height - Imperial3.54"
External Width - Imperial1.97"
External Depth - Imperial0.94"
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 75-227895 is a grey Handheld Case made of ABS (Acrylonitrile Butadiene Styrene). This enclosure boasts an attractive, lightly textured non-scratch finish which has been achieved using unique chemical etch process. The enclosure is a simple two part construction with plastic end panels which are readily push fitted between two ribs in the case moulding. This, together with the tongue-and-groove joint which connects the two covers, achieves the IP62 seal against the ingress of dust and water.
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Enclosure Type
Handheld
External Height - Metric
90mm
External Depth - Metric
24mm
IP Rating
IP64
NEMA Rating
-
External Width - Imperial
1.97"
Product Range
-
Enclosure Material
ABS
External Width - Metric
50mm
IP Rating
IP64
Body Color
Grey
External Height - Imperial
3.54"
External Depth - Imperial
0.94"
SVHC
No SVHC (21-Jan-2025)
