162-11103
Rotary Potentiometer, Wirewound, 10 kohm, 10 Turns, Linear, 2 W, ± 5%, 162 Series

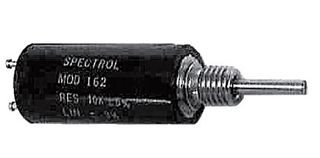

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part No162-11103
Newark Part No.20M1765
Product Range162 Series
Technical Datasheet
29 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $341.050 |
| 5+ | $336.310 |
| 10+ | $331.240 |
| 25+ | $311.210 |
Price for:Each
Minimum: 1
Multiple: 1
$341.05
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part No162-11103
Newark Part No.20M1765
Product Range162 Series
Technical Datasheet
Track Resistance10kohm
No. of Turns10Turns
Track TaperLinear
Power Rating2W
Resistance Tolerance± 5%
Product Range162 Series
Potentiometer MountingPanel Mount
Shaft Diameter2.37mm
No. of Gangs1
Adjustment TypeScrewdriver Slot
Shaft Length17.45mm
Temperature Coefficient± 20ppm/°C
Potentiometer TypePrecision
Resistor TechnologyWirewound
Potentiometer TerminalsTurret
Resistor Case / Package-
Product Length46.03mm
Product Width-
Product Height-
Operating Temperature Min-55°C
Operating Temperature Max125°C
SVHCLead
Product Overview
The 162-11103 is a Wire-wound Rotary Potentiometer with a molded glass filled thermoset plastic housing and lid. This 162 series ten-turn bushing mount precision potentiometer features non-passivated stainless steel shaft, brass terminals, nickel plated brass bushing and screwdriver slot adjustment. This linear track taper potentiometer comes with nickel plated steel bushing mount hardware and nickel-plated brass panel nut.
- Very easy and accurate adjustment
- Bearing type sleeve
- 100MΩ at 500VDC Minimum insulation resistance
- 1000VRMS Dielectric strength
- -55 to 125°C Temperature range
Technical Specifications
Track Resistance
10kohm
Track Taper
Linear
Resistance Tolerance
± 5%
Potentiometer Mounting
Panel Mount
No. of Gangs
1
Shaft Length
17.45mm
Potentiometer Type
Precision
Potentiometer Terminals
Turret
Product Length
46.03mm
Product Height
-
Operating Temperature Max
125°C
No. of Turns
10Turns
Power Rating
2W
Product Range
162 Series
Shaft Diameter
2.37mm
Adjustment Type
Screwdriver Slot
Temperature Coefficient
± 20ppm/°C
Resistor Technology
Wirewound
Resistor Case / Package
-
Product Width
-
Operating Temperature Min
-55°C
SVHC
Lead
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
