BPW46
Photodiode, 65 °, 2 nA, 900 nm, Radial Leaded-2

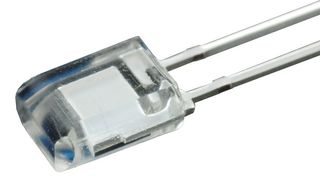

Image is for illustrative purposes only. Please refer to product description.
4,000 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.260 |
| 10+ | $0.880 |
| 100+ | $0.654 |
| 500+ | $0.554 |
| 1000+ | $0.520 |
| 2500+ | $0.484 |
| 10000+ | $0.448 |
Price for:Each
Minimum: 1
Multiple: 1
$1.26
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoBPW46
Newark Part No.32C9152
Technical Datasheet
No. of Pins2Pins
Diode Case StyleRadial Leaded
Wavelength of Peak Sensitivity900nm
Angle of Half Sensitivity ±65°
Dark Current2000pA
Operating Temperature Min-40°C
Operating Temperature Max100°C
Product Range-
MSL-
SVHCNo SVHC (16-Jan-2020)
Product Overview
The BPW46 is a Silicon PIN Photodiode with high speed and high radiant sensitivity. It is sensitive to visible and near infrared radiation. It is suitable for visible and near infrared radiation. It features high photo sensitivity and high radiant sensitivity.
- Fast response times
Applications
Sensing & Instrumentation
Technical Specifications
No. of Pins
2Pins
Wavelength of Peak Sensitivity
900nm
Dark Current
2000pA
Operating Temperature Max
100°C
MSL
-
Diode Case Style
Radial Leaded
Angle of Half Sensitivity ±
65°
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (16-Jan-2020)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jan-2020)
