ORNTA1002AT1
Fixed Network Resistor, 10 kohm, Isolated, 4 Resistors, DIP, Gull Wing, ± 0.1%

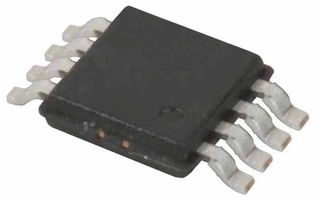

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoORNTA1002AT1
Newark Part No.49R0057
Product RangeORN Series
Technical Datasheet
10 In Stock
4,000 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.790 |
| 10+ | $4.880 |
| 25+ | $4.380 |
| 50+ | $3.980 |
| 100+ | $3.520 |
| 250+ | $3.130 |
| 500+ | $2.950 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$6.79
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoORNTA1002AT1
Newark Part No.49R0057
Product RangeORN Series
Technical Datasheet
Resistance10kohm
Product RangeORN Series
Network Circuit TypeIsolated
Resistor Case / PackageDIP
No. of Resistors4Resistors
Resistor TerminalsGull Wing
Voltage Rating100V
Power Rating per Resistor100mW
Resistance Tolerance± 0.1%
Temperature Coefficient± 25ppm/°C
Resistor TypeNetwork
Resistor TechnologyThin Film
Resistor MountingSurface Mount Device
Terminal Pitch1.27mm
Power Rating100mW
Product Length4.93mm
Product Width3.99mm
Product Height1.73mm
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (16-Jan-2020)
Product Overview
The ORN series surface-mount dual-in-line network Thin Film Resistor features four isolated resistors with standard 50mil pitch lead spacing. The network features close TCR tracking and tight ratio tolerance and are ideally suited for unity gain operational amplifier circuitry.
- Rugged moulded case construction with no internal solder
- Halogen-free according to IEC 61249-2-21 definition
- JEDEC MS-012 STD variation package
Technical Specifications
Resistance
10kohm
Network Circuit Type
Isolated
No. of Resistors
4Resistors
Voltage Rating
100V
Resistance Tolerance
± 0.1%
Resistor Type
Network
Resistor Mounting
Surface Mount Device
Power Rating
100mW
Product Width
3.99mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
ORN Series
Resistor Case / Package
DIP
Resistor Terminals
Gull Wing
Power Rating per Resistor
100mW
Temperature Coefficient
± 25ppm/°C
Resistor Technology
Thin Film
Terminal Pitch
1.27mm
Product Length
4.93mm
Product Height
1.73mm
Operating Temperature Max
125°C
SVHC
No SVHC (16-Jan-2020)
