TSMF1000
Infrared Emitter, High Speed, 890 nm, SMD, 5 mW/Sr, 30 ns, 30 ns

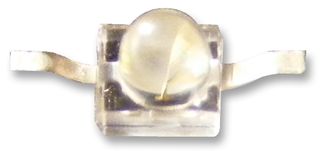

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
| Quantity | Price |
|---|---|
| 250+ | $0.701 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1000
Multiple: 1000
$701.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoTSMF1000
Newark Part No.33C1776
Technical Datasheet
Peak Wavelength890nm
Diode Case StyleSMD
Radiant Intensity (Ie)5mW/Sr
Rise Time30ns
Fall Time tf30ns
Forward Current If(AV)20mA
Forward Voltage VF Max1.3V
Operating Temperature Min-40°C
Operating Temperature Max85°C
Automotive Qualification Standard-
Product Range-
MSLMSL 3 - 168 hours
SVHCNo SVHC (07-Nov-2024)
Product Overview
The TSMF1000 is a 890nm Infrared Emitting Diode in GaAlAs double hetero (DH) technology. It is moulded in clear, untinted plastic packages (with lens) for surface mounting (SMD). It is suitable for use in IrDA compatible data transmission, miniature light barrier, photointerrupters, optical switch, control and drive circuits and shaft encoders.
- High speed
- High radiant power
- ϕ = ±17° Angle of half intensity
- Low forward voltage
- Suitable for high pulse current operation
- Versatile terminal configurations
Applications
Consumer Electronics, Industrial, Communications & Networking, Signalling, Automation & Process Control
