2202-1407

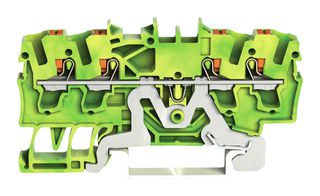

DIN Rail Mount Terminal Block, 4 Positions, 12 AWG, 12 AWG, 2.5 mm², Clamp, 24 A
Image is for illustrative purposes only. Please refer to product description.
36 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $16.550 |
| 25+ | $15.660 |
| 100+ | $14.780 |
| 250+ | $13.820 |
| 500+ | $12.880 |
Price for:Each
Minimum: 1
Multiple: 1
$16.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAGO
Manufacturer Part No2202-1407
Newark Part No.07AH1657
Product RangeTOPJOB S Series
No. of Positions4Positions
Wire Size AWG Min12AWG
Wire Size AWG Max12AWG
Conductor Area CSA2.5mm²
Wire Connection MethodClamp
Rated Current24A
Rated Voltage800V
No. of Levels1
Product RangeTOPJOB S Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
4-conductor ground terminal block with push-button. Certified by UL 6007, IEC 60079-0, CNCA-C23-01, TP TC 012/201, IEC 60079, EN 60947, C22.2, IEC 60947.
- With test port, side and center marking
- Connectable conductor materials is copper
- For DIN-rail 35 x 15 and 35 x 7.5
- Push-in CAGE CLAMP® connection technology
- Operating temperature range from -60 to +105°C (continuous)
- Green-yellow color polyamide (PA66) insulation
- Weight is 10.8g
- 2.5mm² nominal cross-section
- Total number of connection is 2 points
Technical Specifications
No. of Positions
4Positions
Wire Size AWG Max
12AWG
Wire Connection Method
Clamp
Rated Voltage
800V
Product Range
TOPJOB S Series
Wire Size AWG Min
12AWG
Conductor Area CSA
2.5mm²
Rated Current
24A
No. of Levels
1
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
