857-357

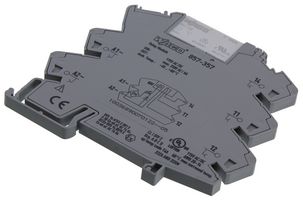

Power Relay, SPST, 115 VDC, 6 A, 857 Series, DIN Rail, DC
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No857-357
Newark Part No.58P0634
Product Range857 Series
Also Known AsGTIN UPC EAN: 4045454694029
Technical Datasheet
41 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $61.220 |
| 25+ | $57.980 |
| 100+ | $54.480 |
| 250+ | $51.240 |
| 500+ | $48.000 |
Price for:Each
Minimum: 1
Multiple: 1
$61.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAGO
Manufacturer Part No857-357
Newark Part No.58P0634
Product Range857 Series
Also Known AsGTIN UPC EAN: 4045454694029
Technical Datasheet
Contact ConfigurationSPST
Coil Voltage115VDC
Contact Current6A
Product Range857 Series
Relay MountingDIN Rail
Coil TypeDC
Contact Voltage VAC250VAC
Relay TerminalsScrew
Relay TypePower - General Purpose
Contact Voltage VDC24V
Contact MaterialSilver Nickel
Coil Resistance-
SVHCLead
Product Overview
The 857-357 is a general-purpose Pluggable Power Relay with SPST silver nickel contact and screw terminals. This 857-series relay socket with miniature switching relay for DIN 35 rail. It features industries smallest pitch, reduces panel space. Flexible jumping system eliminates redundant wiring. Safe operation with 3-way isolation.
- For easy placement
- -25 to 50°C Ambient temperature range
Applications
Industrial
Technical Specifications
Contact Configuration
SPST
Contact Current
6A
Relay Mounting
DIN Rail
Contact Voltage VAC
250VAC
Relay Type
Power - General Purpose
Contact Material
Silver Nickel
SVHC
Lead
Coil Voltage
115VDC
Product Range
857 Series
Coil Type
DC
Relay Terminals
Screw
Contact Voltage VDC
24V
Coil Resistance
-
