WL-6010QM3
Neon Indicator, Non Relampable, 125 V, Quick Connect, Amber, 9.65 mm, Dome, 1.5 mA

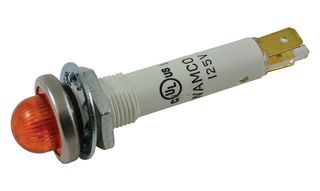

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAMCO
Manufacturer Part NoWL-6010QM3
Newark Part No.86T5748
Product Range6010QM Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 250+ | $8.500 |
| 500+ | $7.440 |
Price for:Each
Minimum: 300
Multiple: 200
$2,550.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAMCO
Manufacturer Part NoWL-6010QM3
Newark Part No.86T5748
Product Range6010QM Series
Technical Datasheet
Supply Voltage125V
Lamp Base TypeQuick Connect
Illumination ColorAmber
Mounting Hole Dia9.65mm
Lens ShapeDome
Current Rating1.5mA
Product Range6010QM Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
The WL-6010QM3 is a Non-relampable Neon Indicator with 0.187-inch tinned brass quick-connect terminals and dome-shaped polycarbonate lens. It has stainless steel bezel and white nylon body. It offers high resistance to shock and vibration, making this an ideal choice for an indicator light source. Ideal for outdoor applications.
- Panel mount
- 0.030 to 0.250" Recommended panel thickness
- 1.5mA Current
- 25000hrs Lifespan
- Splash-proof
- NEMA 3-R rating
Applications
Signalling
Technical Specifications
Supply Voltage
125V
Illumination Color
Amber
Lens Shape
Dome
Product Range
6010QM Series
Lamp Base Type
Quick Connect
Mounting Hole Dia
9.65mm
Current Rating
1.5mA
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Alternatives for WL-6010QM3
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
