1706040000
DIN Rail Mount Terminal Block, 3 Positions, 26 AWG, 12 AWG, Screw, 20 A

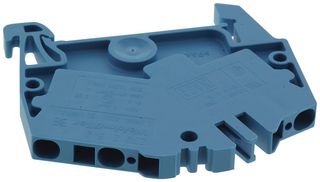

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No1706040000
Newark Part No.65T5032
Also Known AsZDU 2.5-2/3AN BL
Technical Datasheet
1,593 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.010 |
| 10+ | $3.090 |
| 25+ | $2.910 |
| 50+ | $2.590 |
| 100+ | $2.530 |
| 250+ | $2.350 |
| 500+ | $2.130 |
| 1000+ | $1.890 |
Price for:Each
Minimum: 1
Multiple: 1
$4.01
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No1706040000
Newark Part No.65T5032
Also Known AsZDU 2.5-2/3AN BL
Technical Datasheet
No. of Positions3Positions
Wire Size AWG Min26AWG
Wire Size AWG Max12AWG
Conductor Area CSA-
Wire Connection MethodScrew
Rated Current20A
Rated Voltage600V
No. of Levels1
Product Range-
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 1706040000 from Weidmuller is a Z series feed through terminal block with clamp connection. The housing material is wemid and suitable wire size is 26AWG to 12AWG.
- UL recognized and CSA certified
- Flammability rating meets UL94 V-0
- Dimension is 43mm x 50.5mm x 5.1mm (D x H x W)
- Net weight is 6.66g
- Blue colour terminal block
- Continuous operating temperature range from -50°C to 120°C
- TS 35 mounting rail
- Rated cross section of 2.5mm²
- Voltage rating of 800V current rating of 24A
- Pollution severity is 3 and meets IEC 60947-7-1, EAC, CE standards
Applications
Industrial
Technical Specifications
No. of Positions
3Positions
Wire Size AWG Max
12AWG
Wire Connection Method
Screw
Rated Voltage
600V
Product Range
-
Wire Size AWG Min
26AWG
Conductor Area CSA
-
Rated Current
20A
No. of Levels
1
SVHC
No SVHC (23-Jan-2024)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
