744230900
Filter, Line, Common Mode, WE-CNSW Series, 90 ohm, 550 mA, 1.6mm x 0.85mm x 1.1mm

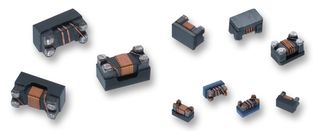

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No744230900
Newark Part No.13T9731
Product RangeWE-CNSW Series
Technical Datasheet
6,510 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
View cut-off times
| Quantity | Price |
|---|---|
| 1+ | $1.330 |
| 10+ | $1.280 |
| 25+ | $1.280 |
| 50+ | $1.230 |
| 100+ | $1.190 |
| 250+ | $1.190 |
| 500+ | $1.160 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$1.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No744230900
Newark Part No.13T9731
Product RangeWE-CNSW Series
Technical Datasheet
DC Current Rating550mA
Inductance-
Product RangeWE-CNSW Series
Impedance90ohm
Inductor Case / Package-
Common Mode Filter Case1.6mm x 0.85mm x 1.1mm
Product Length1.6mm
Product Width0.85mm
Product Height1.1mm
QualificationAEC-Q200
SVHCDiphenyl(2,4,6-trimethylbenzoyl)phosphine oxide (21-Jan-2025)
Product Overview
The great advantage of Wurth Electronics WE-CNSW series is the high suppression of common mode EMI noise at high frequencies, while not influencing the data signal of the interface. Wurth Electronics offers standard WE-CNSW and WE-CNSW High Frequency (HF) series. The WE-CNSW filters are available in package sizes: 0603, 0805, 1206 and 1812 with an ideal operating frequency range of 10MHz up to 1GHz. The WE-CNSW HF filters are available in package sizes 0504 and 0805 with an ideal operating frequency range of 100MHz up to 4GHz.
- Current compensated data line filter
- High common mode noise suppression at high frequencies
- Small influence on high speed signals through winding symmetry
- Recommended solder profile: Reflow
- Operating temperature: -40°C to +125°C
- IEEE 1394 (Firewire)
Applications
Communications & Networking
Technical Specifications
DC Current Rating
550mA
Product Range
WE-CNSW Series
Inductor Case / Package
-
Product Length
1.6mm
Product Height
1.1mm
SVHC
Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide (21-Jan-2025)
Inductance
-
Impedance
90ohm
Common Mode Filter Case
1.6mm x 0.85mm x 1.1mm
Product Width
0.85mm
Qualification
AEC-Q200
Alternatives for 744230900
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide (21-Jan-2025)
