P20P
High Voltage DC/DC Converter, Regulated, Positive Output, Fixed, Adjustable, 2 mW, 1 µA

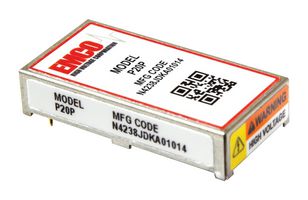

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
| Quantity | Price |
|---|---|
| 1+ | $632.510 |
| 5+ | $623.560 |
| 10+ | $614.620 |
Price for:Each
Minimum: 1
Multiple: 1
$632.51
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerXP POWER
Manufacturer Part NoP20P
Newark Part No.78Y6106
Technical Datasheet
High Voltage Power Supply TypeRegulated
Output Power Max2mW
DC / DC Converter Output TypeFixed, Adjustable
Power Rating2mW
Output Current Max1µA
PolarityPositive Output
Power Supply MountingThrough Hole
Output Voltage Min0V
Output Voltage Max2kV
Input Voltage DC Min5V
DC / DC Converter TypeDIP
Input Voltage DC Max12V
Height6.2mm
Product Range-
Depth35.05mm
Width17.27mm
SVHCNo SVHC (15-Jan-2018)
Product Overview
P series micro-power DC to high voltage DC converters feature extremely low ripple (<lt/>100µV) and low EMI/RFI due to a unique magnetic free design. A precision on-board reference and high impedance voltage programming input allow for easy plug-and-play designs. Typical applications include portable, battery powered CBRN detectors, low power electrostatic applications, low power biasing, low power piezo devices and low power aerosol devices.
- Miniature size
- Grounded metal case
- 0 to 100% programmable output
- Output voltage monitor
- External voltage or potentiometer programming
- Low power consumption
- Built-in voltage reference
- High reliability (MTBF <gt/>1.6 million hours per Bellcore TR-332)
- Soft-start high voltage ramp rates protect sensitive detectors
Technical Specifications
High Voltage Power Supply Type
Regulated
DC / DC Converter Output Type
Fixed, Adjustable
Output Current Max
1µA
Power Supply Mounting
Through Hole
Output Voltage Max
2kV
DC / DC Converter Type
DIP
Height
6.2mm
Depth
35.05mm
SVHC
No SVHC (15-Jan-2018)
Output Power Max
2mW
Power Rating
2mW
Polarity
Positive Output
Output Voltage Min
0V
Input Voltage DC Min
5V
Input Voltage DC Max
12V
Product Range
-
Width
17.27mm
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
