702906

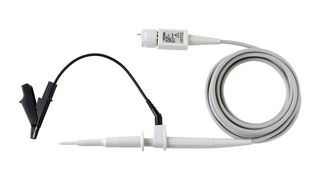

Oscilloscope Probe, High-Voltage Passive Probe, 200 MHz, 1 kV, 10:1, Oscilloscopes
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
| Quantity | Price |
|---|---|
| 1+ | $714.870 |
Price for:Each
Minimum: 1
Multiple: 1
$714.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerYOKOGAWA
Manufacturer Part No702906
Newark Part No.91AH5626
Technical Datasheet
Oscilloscope Probe FunctionHigh-Voltage Passive Probe
Bandwidth200MHz
Input Voltage Max1kV
Test Probe Attenuation10:1
For Use WithOscilloscopes
Product Range-
SVHCTo Be Advised
Product Overview
702906 Is a 10:1 passive probe with a wider operating temperature range (−40 to 85 ˚C) and longer total length than normal passive probes. Suitable for temperature cycling tests.
- DC to 200MHz (-3dB) bandwidth
- BNC connector
- Input capacitance is 16pF
- Matching input capacitance of 15 to 25pF
- 1.8ns maximum (typical) rise time
- 11.2 ns (typical) propagation delay
- 2.5m probe length
Contents
Passive probe, Pincher tip, Ground lead, Marker tip, User’s manual (702906 only) Adjustment screwdriver.
Technical Specifications
Oscilloscope Probe Function
High-Voltage Passive Probe
Input Voltage Max
1kV
For Use With
Oscilloscopes
SVHC
To Be Advised
Bandwidth
200MHz
Test Probe Attenuation
10:1
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
