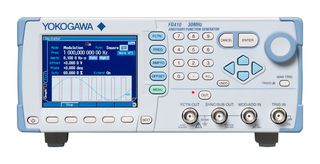

FG410-D

FG410 is a 1-Channel, 30MHz Arbitrary/Function Generator. FG410 easily generates basic, application specific and arbitrary waveforms with a sine wave frequency range of 0.01µHz to 30MHz. Output waveforms consist of Sine, Square, Pulse, Ramp, Parameter-variable, Noise (Gaussian distribution), DC and Arbitrary. This unit includes isolated outputs that allow the user to use it in the development of floating circuits, like motor drives, inverters, power supplies and other power electronic devices. In addition, multiple units can be synchronized together to generate up to 12 phases of output.

• 16 bits amplitude resolution
• 120MS/s sampling rate
• Output: 0 to 20Volts, peak-to-peak
• Synchronize up to 6 units to provide up to 12 output channels
• GPIB and USB interface
• Generate waveforms by ScopeCorder and DL Series Oscilloscopes with XviewerLITE software
• UL/CSA standard

Contents

Arbitrary/function generator, Power cord (1 set), User’s manuals and application software (1 set).
