Product Information
ManufacturerZF
Manufacturer Part NoE20-00A
Newark Part No.17B5906
Product RangeE Series
Technical Datasheet
Microswitch TypeSnap Action
Microswitch ActuatorButton
Contact ConfigurationDPDT
Switch TerminalsQuick Connect
Contact Current Max20A
Contact Voltage DC Nom-
Product RangeE Series
Contact Voltage AC Nom125V
Operating Force Max2.82lbf
SVHCNo SVHC (25-Jun-2025)
Product Overview

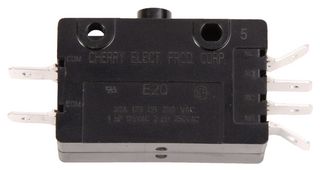

The E20-00A is a double-pole double-throw (DPDT) Snap Action Switch with a thermoplastic standard ratio button actuator. This switch features general purpose phenolic housing, stainless steel spring and copper alloy common terminals.
- Long life coil spring, snap action mechanism
- UL94HB Flammability rating
- 6000 Operation cycles
- 105⁰C Temperature rating
Applications
Commercial, Portable Devices, Automotive, Industrial
Technical Specifications
Microswitch Type
Snap Action
Contact Configuration
DPDT
Contact Current Max
20A
Product Range
E Series
Operating Force Max
2.82lbf
Microswitch Actuator
Button
Switch Terminals
Quick Connect
Contact Voltage DC Nom
-
Contact Voltage AC Nom
125V
SVHC
No SVHC (25-Jun-2025)
