AB26T-32.768KHZ
Crystal, Cylinder Radial, 32.768 kHz, Cylinder Radial, 6.2mm x 2.1mm Dia, 12.5 pF, 20 ppm

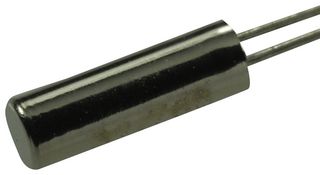

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoAB26T-32.768KHZ
Newark Part No.89K0457
Product RangeAB26T Series
Technical Datasheet
1,107 In Stock
3,000 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.431 |
| 10+ | $0.347 |
| 25+ | $0.340 |
| 50+ | $0.333 |
| 100+ | $0.326 |
| 500+ | $0.292 |
| 1000+ | $0.224 |
Price for:Each
Minimum: 1
Multiple: 1
$0.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoAB26T-32.768KHZ
Newark Part No.89K0457
Product RangeAB26T Series
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseCylinder Radial, 6.2mm x 2.1mm Dia
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -20ppm
Product RangeAB26T Series
Operating Temperature Min-10°C
Operating Temperature Max60°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
The AB26T-32.768KHZ is a 6.2 x 2.1mm Watch Crystal with frequency range of 30 to 200kHz. Load capacitance of 12.5pF and through hole mount.
- Ageing ±3ppm per year (maximum)
- 500MΩ Insulation resistance
Applications
Clock & Timing, Test & Measurement, Communications & Networking
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-10°C
SVHC
No SVHC (07-Nov-2024)
Crystal Case
Cylinder Radial, 6.2mm x 2.1mm Dia
Load Capacitance
12.5pF
Product Range
AB26T Series
Operating Temperature Max
60°C
Technical Docs (1)
Alternatives for AB26T-32.768KHZ
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
