AEAGMK148060-S1575
Antenna, Dome, 1.598GHz to 1.609GHz, 1.5 VSWR, 4.5dBi Gain, Right Hand Circular Polarization, Screw

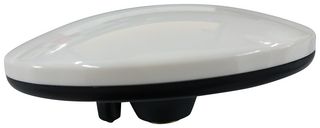

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 25+ | $240.180 |
Price for:Each
Minimum: 120
Multiple: 12
$28,821.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoAEAGMK148060-S1575
Newark Part No.65AC5584
Technical Datasheet
Antenna TypeDome
Frequency Min1.598GHz
Frequency Max1.609GHz
Antenna MountingScrew
Gain4.5dBi
VSWR1.5
Input Power-
Input Impedance50ohm
Antenna PolarizationRight Hand Circular
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
- GPS/Beidou/Glonass external antenna
- Covers GPS (L1/L2/L5), BEIDOU (B1/B2/B3), GLONASS (L1/L2) bands
- TNC-K (SMA) RF connector
- Copper threaded hole
- ABS radome material
- ESD sensitive
Applications
Wireless, IoT (Internet of Things), System Monitoring
Technical Specifications
Antenna Type
Dome
Frequency Max
1.609GHz
Gain
4.5dBi
Input Power
-
Antenna Polarization
Right Hand Circular
SVHC
No SVHC (07-Nov-2024)
Frequency Min
1.598GHz
Antenna Mounting
Screw
VSWR
1.5
Input Impedance
50ohm
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
