                      TG5011

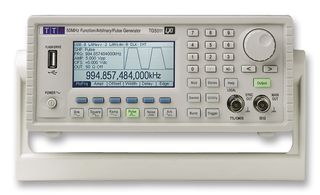

                      Function Generator, Arbitrary / Pulse, 1 Channel, 50 MHz, TGxx11 Series

                      AIM-TTI INSTRUMENTS TG5011
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAIM-TTI INSTRUMENTS
                      Manufacturer Part NoTG5011
                      Newark Part No.05X0074
                      Product RangeTGxx11 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerAIM-TTI INSTRUMENTS
                      Manufacturer Part NoTG5011
                      Newark Part No.05X0074
                      Product RangeTGxx11 Series
                      Technical Datasheet

                      Data Sheet

                      Signal Generator TypeArbitrary, Function, Pulse
                      No. of Channels1 Channel
                      Product RangeTGxx11 Series
                      Bandwidth50MHz
                      Signal Generator ModulationAM, FM, FSK, PM, PWM
                      Manufacturer Warranty3 Years
                      Plug TypeUS
                      SVHCNo SVHC (25-Jun-2020)

                      Product Overview

                      The new TG5011 from TTi offers the best price-performance ratio of any DDS function generator available. It offers high quality sine and square waves up to 50MHz, noise generation, complex waveshapes, true pulse generator mode with variable rise and fall times, and 128K word arbitrary waveforms.

                      • 0.001mHz to 50MHz/25MHz range; 14 digits or 1uHz resolution
                      • Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential and logarithmic
                      • True pulse generator with variable delay and variable rise/fall
                      • Arbitrary waveforms of up to 128K points at up to 125MS/s
                      • Waveform storage using USB flash drives
                      • Large graphic LCD with simultaneous text and waveform display
                      • Comprehensive internal and external digital modulations including AM, FM, PM, PWM and FSK
                      • 20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out
                      • Storage for multiple instrument set-ups in non-volatile memory
                      • Waveform Manager Plus for Windows software included
                      • Programmable via USB and LAN (LXI) interfaces

                      Applications

                      Sensing & Instrumentation, Signal Processing, Test & Measurement

                      Technical Specifications

                      Signal Generator Type

                      Arbitrary, Function, Pulse

                      Product Range

                      TGxx11 Series

                      Signal Generator Modulation

                      AM, FM, FSK, PM, PWM

                      Plug Type

                      US

                      No. of Channels

                      1 Channel

                      Bandwidth

                      50MHz

                      Manufacturer Warranty

                      3 Years

                      SVHC

                      No SVHC (25-Jun-2020)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Legislation and Environmental

                      US ECCN:Unknown
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (25-Jun-2020)
                      Download Product Compliance Certificate

                      Product Compliance Certificate
