682/2 BK038
Multiconductor Cable, Unshielded, 4 Conductor, 23 AWG, 0.27 mm², 10 ft, 3 m

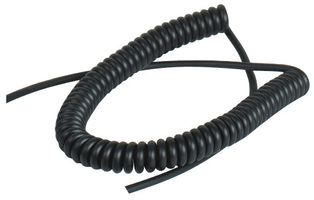

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 100+ | $246.310 |
Price for:Each
Minimum: 100
Multiple: 1
$24,631.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALPHA WIRE
Manufacturer Part No682/2 BK038
Newark Part No.98B9490
Technical Datasheet
Cable ShieldingUnshielded
No. of Conductors4Conductor
Wire Gauge23AWG
Conductor Area CSA0.27mm²
Reel Length (Imperial)10ft
Reel Length (Metric)3m
Jacket ColorBlack
No. of Max Strands x Strand Size21 x 36AWG
Conductor MaterialTinned Copper
Jacket MaterialPolychloroprene
External Diameter6.35mm
Voltage Rating300V
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 682/2 BK038 is a 4-core unshielded Retractile Communications Cord with stranded tinned copper conductor, rubber insulation and a black neoprene jacket.
- -20 to 60°C Operating temperature range
Applications
Consumer Electronics, Industrial, Communications & Networking, Medical, Test & Measurement
Technical Specifications
Cable Shielding
Unshielded
Wire Gauge
23AWG
Reel Length (Imperial)
10ft
Jacket Color
Black
Conductor Material
Tinned Copper
External Diameter
6.35mm
Product Range
-
No. of Conductors
4Conductor
Conductor Area CSA
0.27mm²
Reel Length (Metric)
3m
No. of Max Strands x Strand Size
21 x 36AWG
Jacket Material
Polychloroprene
Voltage Rating
300V
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
