2316315-2

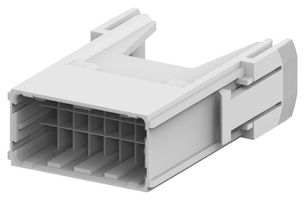

Heavy Duty Connector, HDC Dynamic Series, Module, 24 Contacts, Plug, Crimp Pin
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No2316315-2
Newark Part No.12AJ6675
Product RangeHDC Dynamic Series
341 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $5.510 |
| 10+ | $5.510 |
| 25+ | $5.510 |
| 50+ | $5.510 |
| 100+ | $5.510 |
| 500+ | $4.550 |
| 1000+ | $4.350 |
| 2500+ | $4.270 |
Price for:Each
Minimum: 1
Multiple: 1
$5.51
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No2316315-2
Newark Part No.12AJ6675
Product RangeHDC Dynamic Series
Product RangeHDC Dynamic Series
Heavy Duty Connector TypeModule
No. of Contacts24 Contacts
Rectangular Shell Size-
Heavy Duty Contact TypeCrimp Pin
Current Rating3.7A
SVHCNo SVHC (25-Jun-2025)
Product Overview
HMN–HD1 module is a heavy duty connector with dynamic insert designed specifically for harsh environments for industrial applications. This HDC dynamic series makes it possible to reduce cable assembly costs by using semi-automatic or fully-automatic crimping of dynamic contacts.
- Male housing assembly
- Improved operational efficiency using automated crimping process
- Voltage rating is 300V
- PBT GF material
- Increased flexibility and reduced size for space-saving
Technical Specifications
Product Range
HDC Dynamic Series
No. of Contacts
24 Contacts
Gender
Plug
Current Rating
3.7A
Heavy Duty Connector Type
Module
Rectangular Shell Size
-
Heavy Duty Contact Type
Crimp Pin
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
